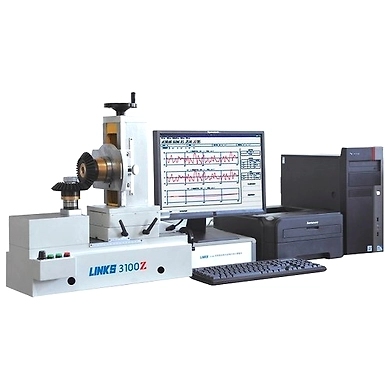

Double Flank Roll Tester For Bevel Gears

BrandPRIME TECHNOLOGIES

• Product is not available

• Price upon request
• Quantity

  -

  +

  Send Enquiry
• The tester is new model of gear measuring machine featuring in intelligent operation and mechanical and electrical integration. It is mainly designed for measuring the offset of bevel gear concial point with 90° crossed axis angle. And check the total axial composite deviation Fam″, tooth to tooth axial composite deviation fam″of bevel gears. It can automatically "pick out" the tooth surfaces with burs or scratches. The measuring commands and parameters are entered via keyboard and displayed in the monitor. The measurement results are displayed in the monitor or printed out by printer.
  B. Features
  The Tester is new type of automatic and intelligent double-flank rolling gear tester with integrated functions and PC controlled measurement and data process.The monitor displays measurement results and error curves and print measurement report. It is small and poweful, easy to handle and has stable measuring accuracy.

  Minimum Order Quantity1
